Applications:

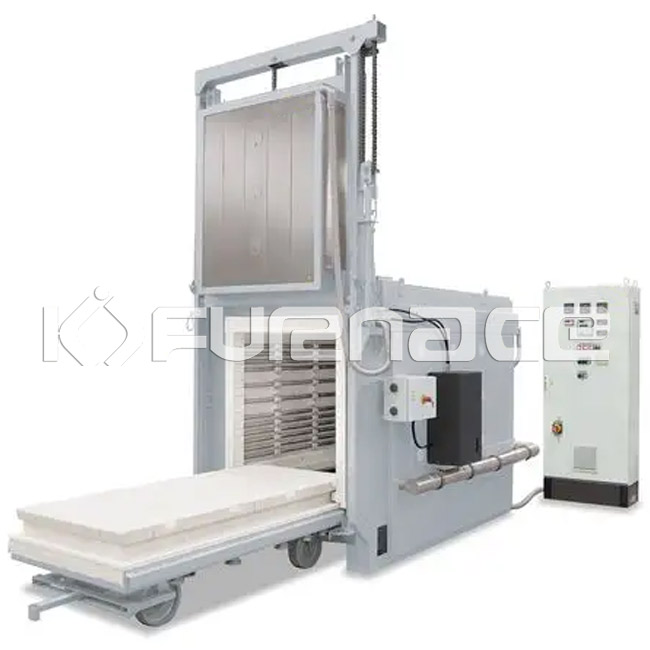

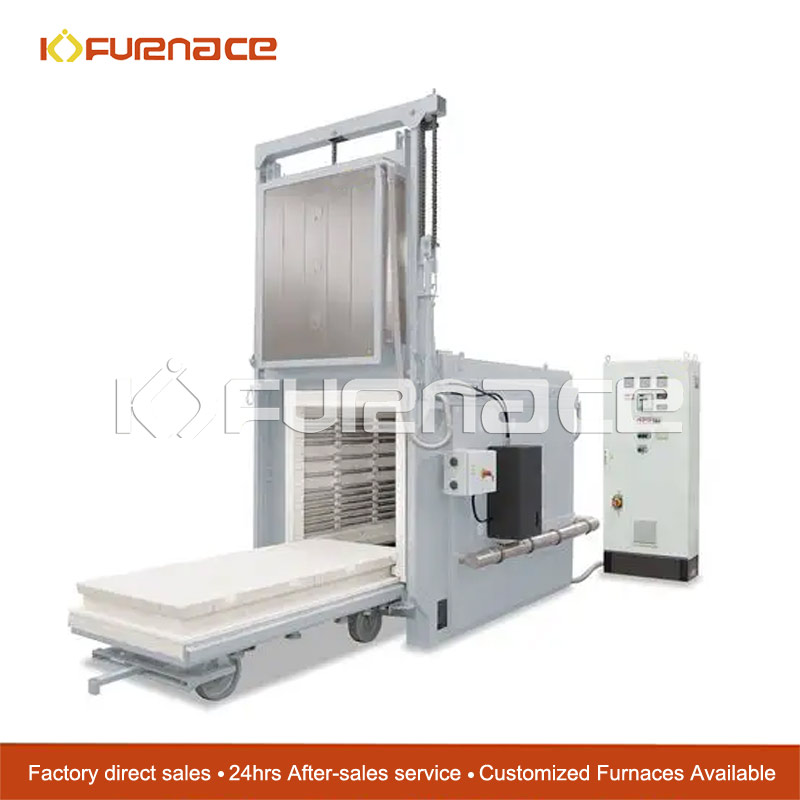

This trolley furnace is widely used in universities, scientific research institutes, industrial and mining enterprises, etc. It is an ideal equipment for experiments and production of powder, electronics, metallurgy, medicine, ceramics, sulfur, new glass materials, chemical industry, metal sintering and metal heat treatment.
Product description:
The furnace has the advantages of balanced temperature field, low furnace surface temperature, fast temperature rise and fall, and energy saving. The furnace is constructed of imported high-temperature composite fiber materials through numerical control technology, which has strong thermal shock resistance, good corrosion resistance, no collapse, no crystallization, no slag drop, no pollution, and long service life. The heating element is a silicon carbide rod, and an air cooling system is equipped between the double-layer shells, which can quickly cool down; the control system adopts microcomputer artificial intelligence adjustment technology, with PID adjustment, automatic control, self-tuning functions, multi-segment program programming, and can program various Various heating, heat preservation, and cooling programs, high temperature control accuracy; integrated module thyristor control, phase shift trigger, protection system; independent over-temperature protection, over-voltage, over-current, leakage, short-circuit and other protections. The degree of automation is high, and various indicators have reached a reliable level.
Product parameters:
This trolley furnace is widely used in universities, scientific research institutes, industrial and mining enterprises, etc. It is an ideal equipment for experiments and production of powder, electronics, metallurgy, medicine, ceramics, sulfur, new glass materials, chemical industry, metal sintering and metal heat treatment.
Product description:
The furnace has the advantages of balanced temperature field, low furnace surface temperature, fast temperature rise and fall, and energy saving. The furnace is constructed of imported high-temperature composite fiber materials through numerical control technology, which has strong thermal shock resistance, good corrosion resistance, no collapse, no crystallization, no slag drop, no pollution, and long service life. The heating element is a silicon carbide rod, and an air cooling system is equipped between the double-layer shells, which can quickly cool down; the control system adopts microcomputer artificial intelligence adjustment technology, with PID adjustment, automatic control, self-tuning functions, multi-segment program programming, and can program various Various heating, heat preservation, and cooling programs, high temperature control accuracy; integrated module thyristor control, phase shift trigger, protection system; independent over-temperature protection, over-voltage, over-current, leakage, short-circuit and other protections. The degree of automation is high, and various indicators have reached a reliable level.
Product parameters:
| Product name | High temperature trolley furnace |
| Model | KJ-MT1400-80LS |
| effective size | 400*400*500 |
| maximum temperature | 1400℃ |
| Operating temperature | The temperature is not higher than 1300°C under continuous operation |
| Temperature control method | Using PID controller, intelligent 30-segment programmable control |
| Furnace material | Alumina refractory fiber furnace |
| Heating element | Silicon carbide rod |
| Temperature measuring element | S type thermocouple |
| Heating rate | 0--20℃/min |
| power supply | 220V 50hz |
| power | 30KW |
| Constant temperature accuracy | ±1℃ |
| Furnace door opening method | Open up |
| The way of entering and exiting the material table | Manual/electric optional |
| Free Accessories | 1 pair of crucible pliers, 1 pair of high-temperature gloves, instruction manual, etc. |
| warranty | 15 months from the date of delivery or 12 months from the customer's acceptance, whichever comes first (except consumables such as silicon molybdenum rods, silicon carbide rods, resistance wires and man-made damage), lifetime warranty, free of charge Technical guidance installation and equipment commissioning services. Upon expiration of the warranty period, renewal service is provided. |
